Right Angle SSMA Jack/Female RF Coaxial Connector 4 Hole Flange Mount , Microstrip Flat
|
|
Détails sur le produit:
Conditions de paiement et expédition:
|
Description de produit détaillée
| Nom du produit: | Connecteur Microstrip Femelle RA SSMA | Modèle: | SSMA-KWFD18 |
|---|---|---|---|
| Gamme de fréquences: | 0.3 MHz à 18 GHz | Impédance: | 50Ω |
| Tension nominale: | 250 V ou plus | DWV: | Pour les appareils électroniques |
| Résistance d'isolement: | ≥5000MΩ | Conducteur central: | Alliage de cuivre, plaqué d'or |
| Conducteur extérieur: | Alliage de cuivre, plaqué d'or | Méthode de bâti: | Montage à bride à 4 trous |
| Microstrip: | Taille plate 0,2 × φ0.88 | Vis: | Pour les produits à base de plantes: |
| Isolateurs: | Ptfe | ||
| Mettre en évidence: | Microstrip Flat RF Connector,SSMA Jack RF Coaxial Connector,4 Hole Flange Mount RF Connector |
||

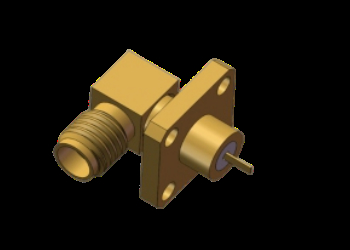

4 Hole Flange Mount Right Angle SSMA / Mini SMA RF Coax Microstrip Flat Connector Up to 18GHz
Product Specifications
| Items | Value |
|---|---|
| Product Name | RA SSMA Female Microstrip Flat Connector |
| Model | SSMA-KWFD18 |
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mount Method | 4 Hole Flange Mount |
| Insulators | PTFE |
| Samples | In Stock, Available |
Product Overview
The Right Angle SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These connectors feature:
- Compact size with wide frequency bandwidth
- Superior mechanical and electrical performance
- High reliability in demanding applications
- Threaded connection (10-36UNF-2)
- Characteristic impedance of 50Ω
- Frequency operation up to 30GHz
Interface Dimensions
SSMA Right Angle 4 Hole Flange Mount Connectors with Microstrip Flat Dimensions SSMA-KWFD18 (Unit: mm).
Other Stainless Steel 4 Hole flange Mount Right Angle SSMA Microstrip Flat Connectors Models: SSMA-KWFD61G
Applications
Ideal for high-precision microwave signal transmission in:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Packaging & Shipping
Packaging: Each 4 hole flange mount right angle SSMA connector is carefully packaged in protective cartons to ensure safe transit. Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Shipping: We use reliable courier services with tracking numbers provided for all shipments.Note: For other similar flange mount right angle connector models, please check our catalog. While some models are in stock, all can be produced quickly to meet customer requirements.
