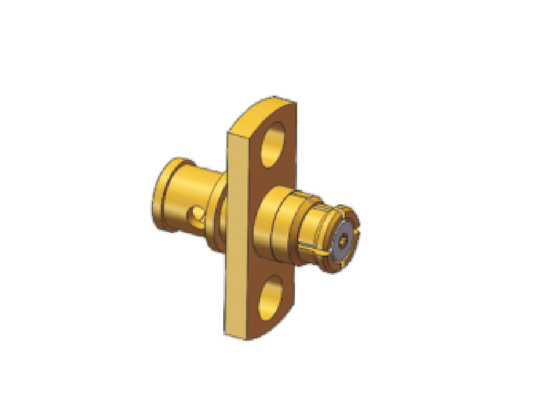

2 holes flange mount SMP Female Cable Connector Jack mating for CXN3506/MF108A Frequency Up To 18GHz
|
Détails sur le produit:
Conditions de paiement et expédition:
|
Description de produit détaillée
| Température: | -55 ℃ ~ + 125 ℃ | Modèle: | SMP-KF506-35 |
|---|---|---|---|
| Contacts: | Alliage de cuivre, placage doré | DWV: | 500V |
| Impédance: | 50Ω | Isolant: | PTFE |
| Nom du produit: | Connecteur de câble femelle à bride SMP | Gamme de fréquences: | 0,3 MHz-18 GHz |
| Logement: | Alliage de cuivre, placage d'or | En stock: | >500 pièces |
| Résistance d'isolation: | >5000MΩ | Calbe d'accouplement: | MF108A / CXN3506 |
| Mettre en évidence: | 2 holes flange mount SMP connector,SMP female cable connector jack,SMP RF connector up to 18GHz |
||
Product Description:
Our SMP push-on subminiature coaxial connectors are engineered for high-frequency RF operation up to 40 GHz. Featuring an ultra-compact structure and stable operational performance, this series is widely deployed in board-to-board linking for electronic equipment, communication systems, satellite communication and radar systems. Its space-saving design supports high-density layout on circuit boards, greatly optimizing overall installation space.
Three distinct designs are offered for SMP male plugs: full detent, limited detent (semi-detent / half-detent) and smooth bore (catcher's mitt style). You can pick the right type according to your actual working conditions.
The full detent model delivers the strongest holding force and outstanding resistance to vibration and shock, which works perfectly for cable interconnections and scenarios where signal continuity must be guaranteed.
The limited detent variant balances retention strength and service life. Developed based on smooth bore structure, it stands out for long-term repeated mating, and is a mainstream option for PCB assembly and blind-mating connections.
The smooth bore style boasts consistent insertion and extraction force. It can compensate for axial and radial position deviation, so it is the top choice for mass assembly of board-to-board SMP connectors and large-scale blind-mating projects.
|
Electrical Characteristics
|
||
|
Impedance
|
50Ω
|
|
|
Frequency Range
|
DC~40GHz
|
|
|
Rated Voltage
|
170VRMS
|
|
|
Dielectrics Voltage-resistance
|
500VRMS
|
|
|
Insulation Resistance
|
≥5000MΩ
|
|
|
|
Outer conductor
|
Normal≤2.5mΩ
|
|
Center conductor
|
Normal≤6mΩ
|
|
|
VSWR
|
≤1.3
|
|
| VSWR | DC~18GHz | 18GHz~26.5GHz | 26.5~40GHz | |
| Straight | ≤1.25 | ≤1.3 | ≤1.4 | |
| Right Angle | ≤1.3 | |||
| Adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| Others | ≤1.3 |
The outline demension of SMP Jack Flange Mount Mating Cable CXN3506 / MF108A, Model: SMP-KF506-35 Up to 18GHz
Right Angle SMP Cable Assemblies for your reference:
Cable Model:CXN 3506
Cable OD: 2.3mm
Cable Color : Grey
Frequency:up to 18GHz
We also have straight and right angle SMP Cable, SMP Model: SMP-K506 Up to 18GHz
Cable Model: CXN 3506 / MF108A
Cable OD: 2.3mm
Cable Color: Grey
More products, please contact us freely for the SMP Cable Connectors catalog sales3@xa-elite.com.cn
Applications:
Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.
Customization:
Product Customization Services for Different Length SMP Connectors are available:
Brand Name: ELT
MOQ: 200 pcs
Price: Depending on the quantity
Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.
We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler.
Packing and Shipping:
Packaging for SMP Straight Connectors:
1 Piece/ small plastic bag
10 Pieces/ larger plastic bag
100 Pieces/ carton box
The SMP Connectors comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.
For shipping, the SMP Connectors is placed in caron. We will supply the tracking No after shipping.
