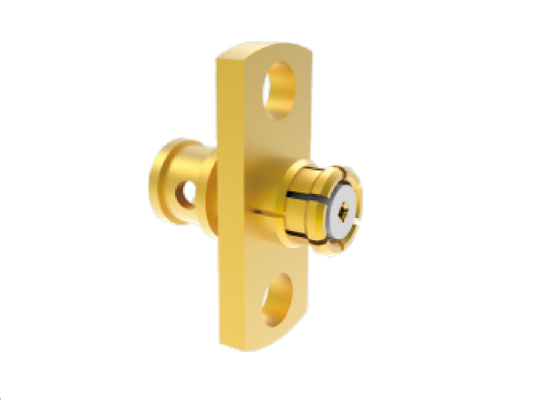

50Ω 18GHz SMP Jack 2 Hole Flange Aerospace RF Connectors Mating for CXN3506 Cable
|
Détails sur le produit:
Conditions de paiement et expédition:
|
Description de produit détaillée
| Nom du produit: | Connecteur de câble SMP | Modèle: | SMP-KF506-25 |
|---|---|---|---|
| Gamme de fréquences: | 0,3 MHz-18 GHz | Impédance: | 50Ω |
| DWV: | 500V | Résistance d'isolation: | ≥5000MΩ |
| Conducteur central: | ≤6 mΩ ; Alliage de cuivre, plaqué or | Conducteur externe: | ≤3 mΩ ; Alliage de cuivre, plaqué or |
| Isolateurs: | PTFE | Cable d'accouplement: | CNX3506 |
| VSWR: | ≤1,3 | Perte d'insertion: | ≤0,4dB |
| Température: | -55°C à 125°C | Durabilité: | 500 cycles |
| Mettre en évidence: | 50Ω 18GHz SMP RF connector,2 hole flange aerospace connector,SMP jack for CXN3506 cable |
||
50Ω 18GHz SMP Jack 2 Hole Flange Aerospace RF Connectors Mating for CXN3506 Cable
As premium miniature push-fit RF coaxial interconnect components, SMP series connectors stand out in compact layout design and broad frequency coverage reaching maximum 40GHz operating range. Different from traditional threaded RF connectors, it adopts effortless push-on mating structure with three distinct locking types to meet diverse fastening demands. Built-in floating tolerance design enables convenient blind mating, effectively offsetting assembly deviation in multi-direction. With outstanding adaptability for dense module layout, these high-frequency connectors guarantee low-loss microwave signal transmission, widely adopted in vehicle-mounted communication, ship-borne radar and satellite-borne aerospace communication equipment for harsh environment stable connection.
SMP Design Features
- Compact design
- Frequency band operation up to 40GHz
- Rugged construction for reliability
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss
Interface of SMP RF Coaxial Connectors
50Ω 18GHz SMP Jack 2 Hole Flange Aerospace RF Connectors Mating for CXN3506 Cable, MF108A
Model No.: SMP-KF506-25 ( Cable OD2.3 mm )
50Ω 18GHz SMP Straight Female Aerospace RF Connectors Mating for CXN3506 Cable, MF108A
Model No.: SMP-K506-45 ( Cable OD2.3 mm )
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SMP .086 cable connectors aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
